Evaporative Air Cooler (Evap)
Want to lower the temperature but don't want to install air conditioning? The solution is the "EVAP" system.
The lower the temperature, the colder it gets. The colder it gets, the higher the electricity usage rate will be. These rules are general air conditioner rules. However, these rules do not apply to the Evaporative Cooling System. The Evaporative Cooling System can reduce the temperature with much lower electricity consumption. This system uses the principle of pulling air to reduce the temperature with water. When air flows through water, the temperature decreases. If the water temperature is colder, the EVAP system can work more efficiently. It only uses an air fan to send cool air into the system, thereby saving electricity and effectively reducing temperatures by up to 5-10 degrees Celsius.
Special features of Evaporative Air Cooler

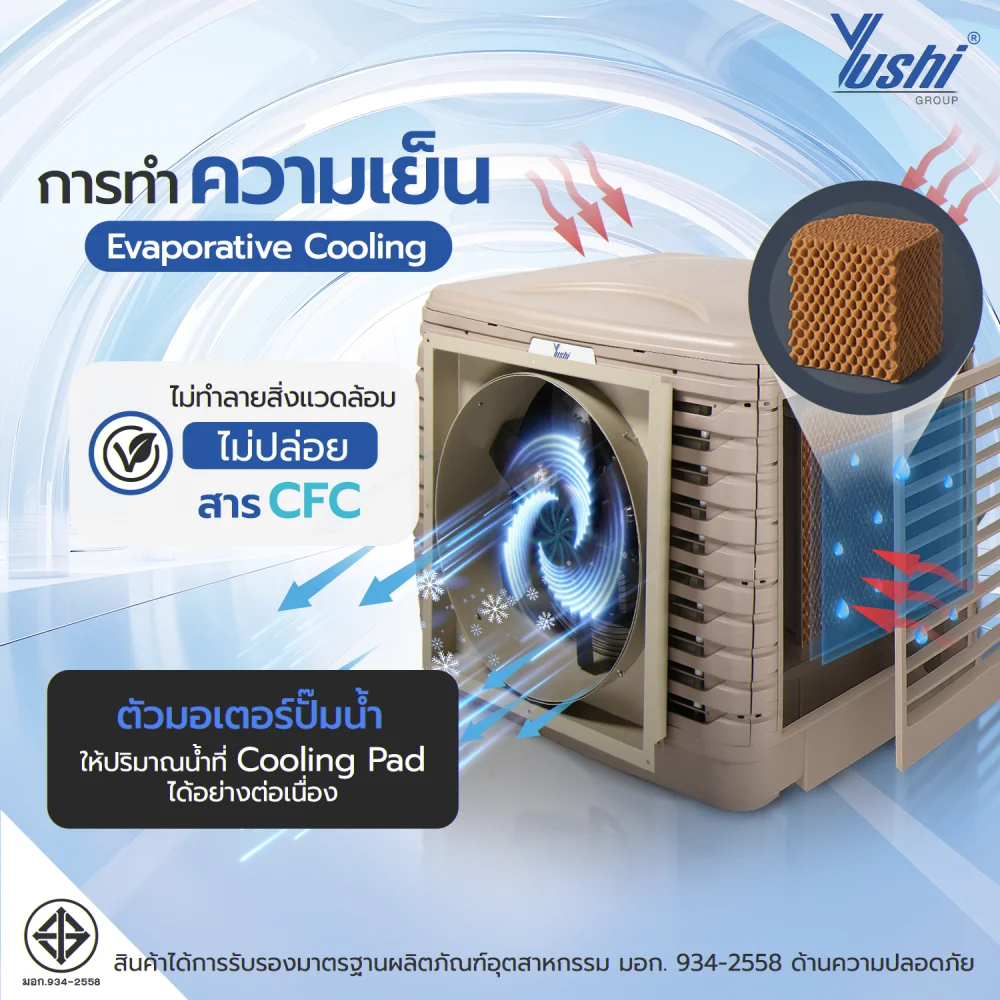

EVAP is a new energy-saving technology that uses the principle of evaporation to cool the air. It absorbs heat from the air, reducing the temperature and eliminating oil mist. Without the need for a compressor or refrigerant, it significantly saves electricity. The cool air produced is then distributed through an air duct to the desired area, helping to reduce heat build-up in enclosed spaces caused by machinery or high ambient temperatures. It is suitable for installation in open, closed, or semi-open buildings.

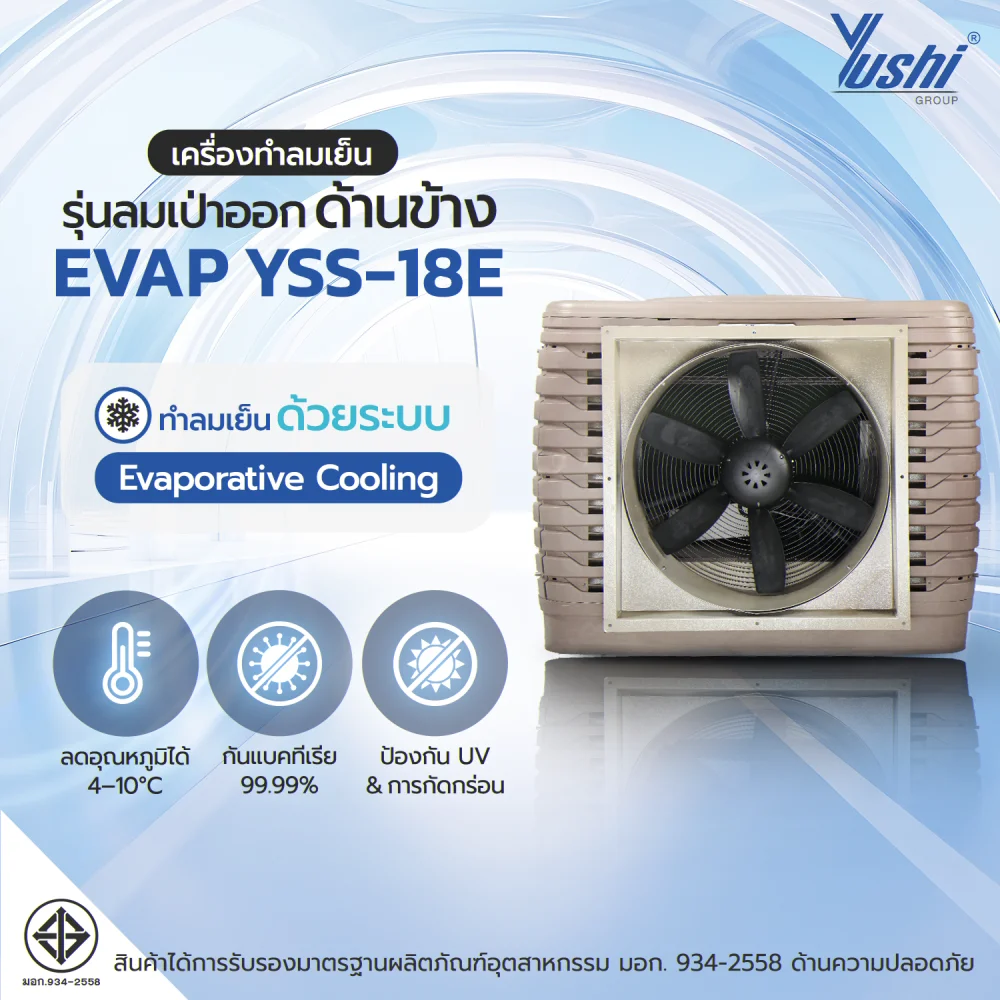

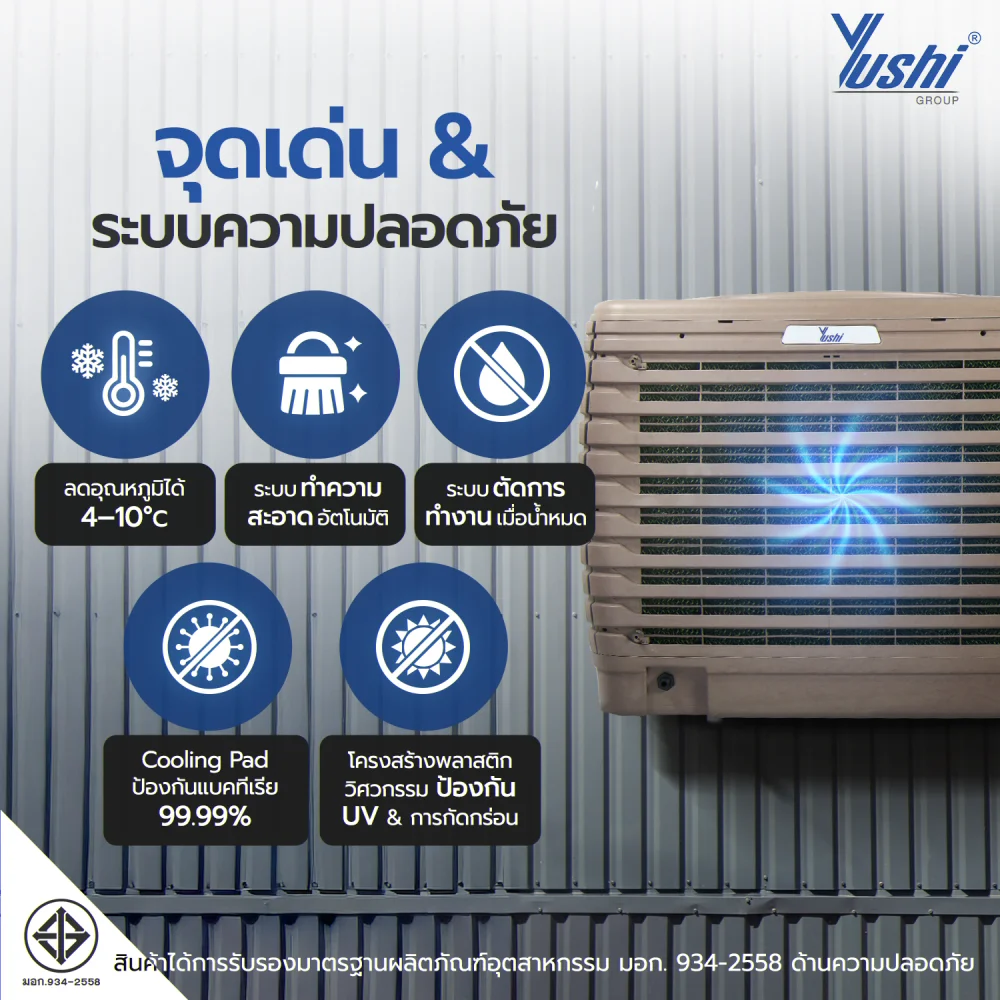

Evaporative Air Cooler Yss-18E
- Upward blowing Air Cooler model.
- Provides cooling through water evaporation and air dispersion through the air outlet.
- Enhances air circulation and ventilation within buildings for fresher indoor air.
- Capable of cooling enclosed factory areas as well as open spaces.
- Natural, environmentally-friendly cooling method without releasing CFCs.
- Capable of reducing temperatures by 4-10°C in dry, hot environments.
- Reliable quality with an automatic control system for easy operation.
- High-efficiency cooling pads prevent 99.99% of bacteria and scaling, with a 5–10-year lifespan.
- Health and eco-friendly cooling pads.
- Tank and covers made of UV-resistant engineering plastics to prevent corrosion and cracking.
- High heat dissipation water pump motor ensures a continuous water supply to cooling pads.
- Blades are a newly improved product with full injection molding for enhanced strength and stability.

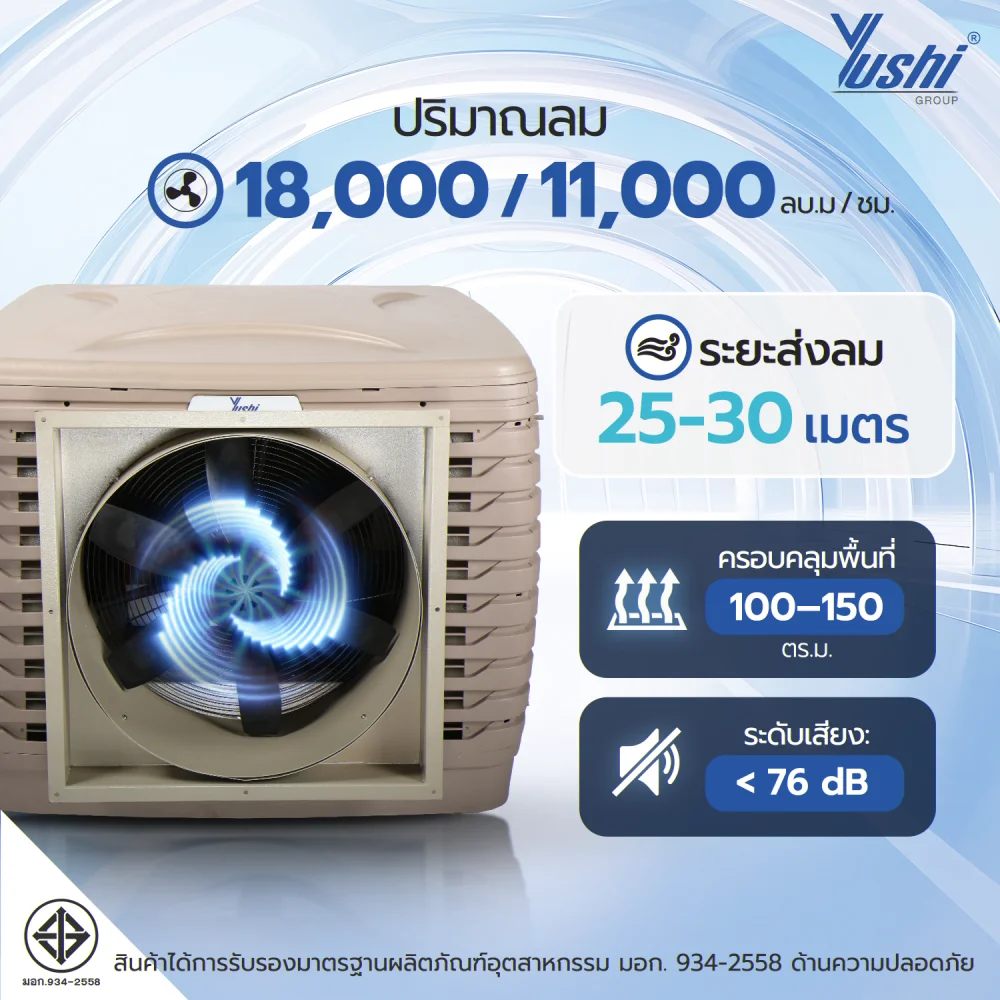

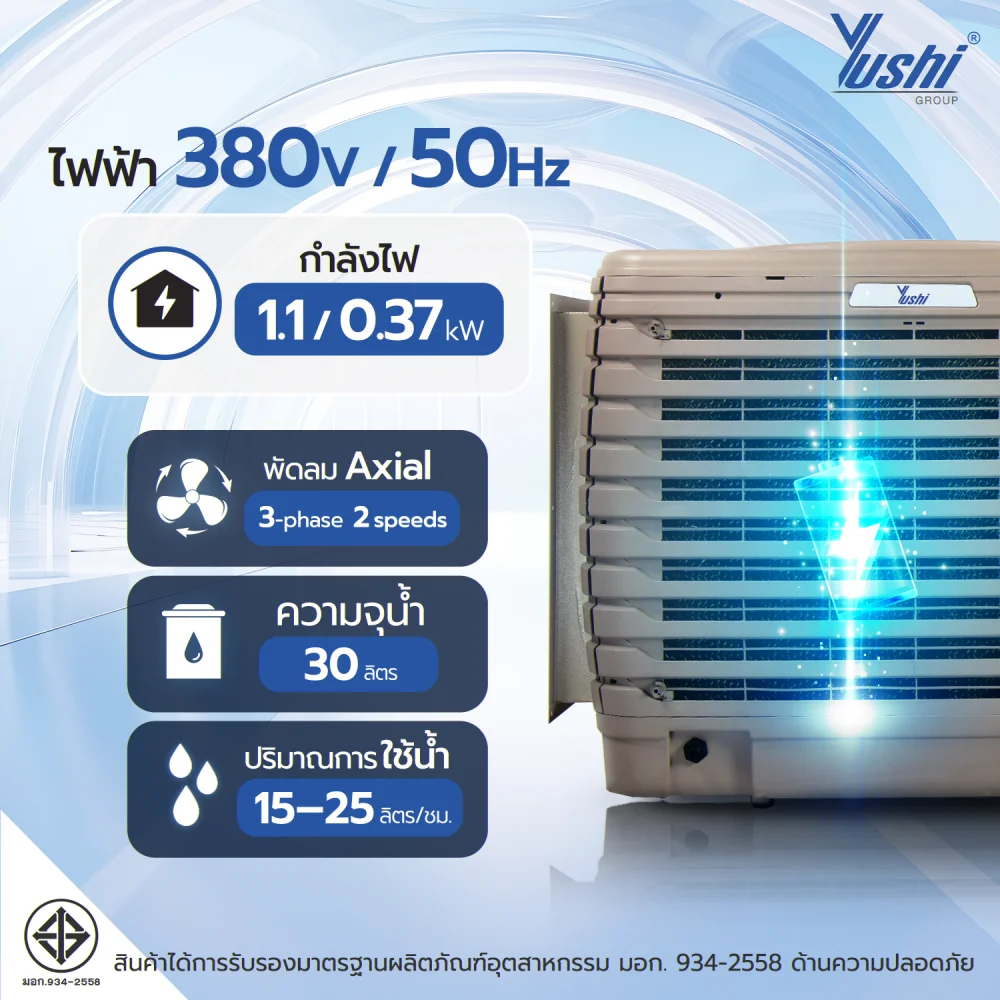

| Model: | YSS-18E |
| Air Flow: | 18000/11000 m3/hr |
| Air Flow: | 10600/6500 cfm |
| Static Pressure: | 194/83 Pa |
| Power: | 1.1/0.37 kW |
| Voltage/Frequency: | 380/50Hz |
| Current: | 2.0/0.85 A |
| Fan Type: | Axial |
| Air Speeds: | 3-phase,2-speeds |
| Sound Level: | < 76 dB |
| Air Throw: | 25-30 m |
| Air Outlet Size: | 647×647 mm |
| Cooling Pad Size: | 620x830x100 mm |
| Coverage Area: | 100-150 sq.m. |
| Dimensions: | 1150x1150x950 mm |
| Operating Weight: | 130 kg |
| Water Tank Capacity: | 30 L |
| Water Consumption: | 15-25 L/hr |
| Self-Cleaning System: | Yes |
| No Water Auto Stop: | Yes |
| Electricity Cost: | 4.40 THB/hr |
Product specifications
