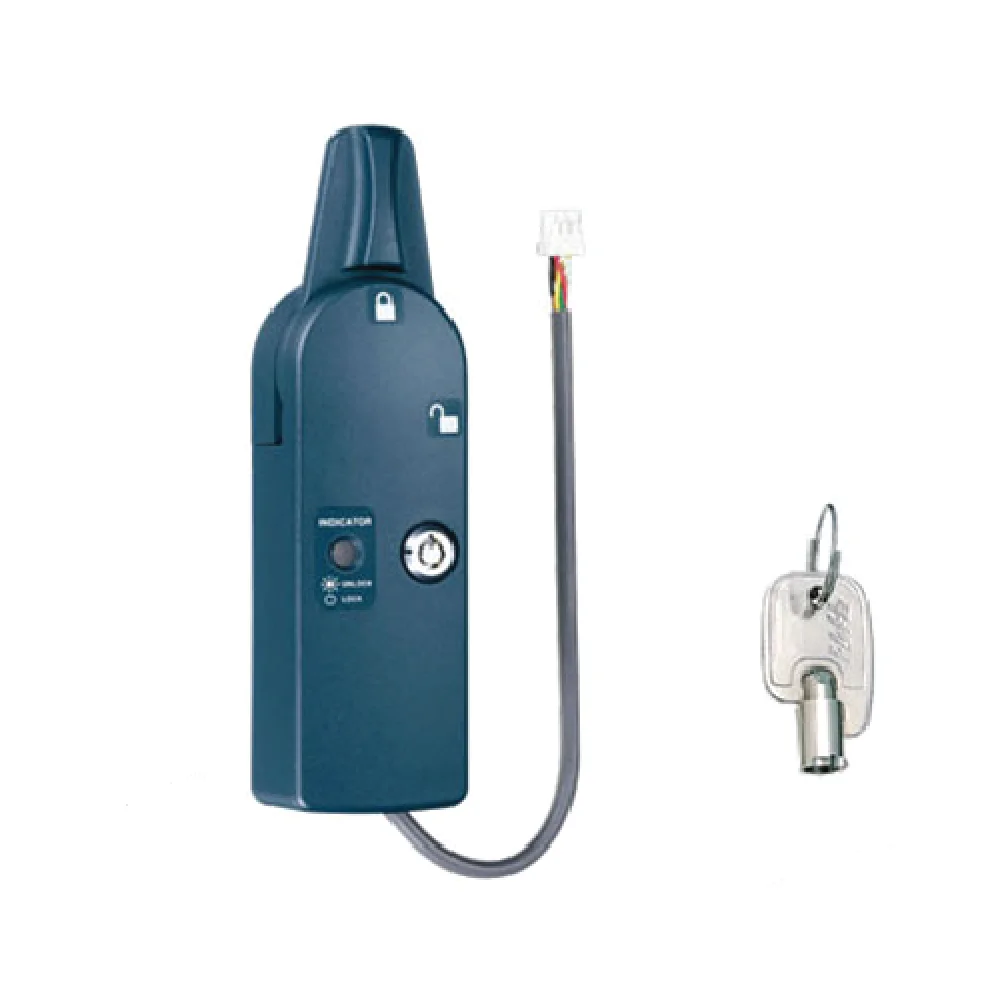

Interlock Devices
Specifications
● Material: Cold rolled stainless steel plate (SUS304)
● Finish: Hairline finish
● Rated voltage: DC24V ±5%
● Current power: 0.73A
● Duty cycle: 10% (intermittent power)
● Max. current-carrying time: 0.5s or less
● Interval: 4.5s or more (0.5s when turned on)
● Input signal: Pulse signal (100ms to 500ms)
● Key No.: J85
● Operating temperature: -5°C to +40°C (non-condensing)
● Operating humidity: 45%RH to 85%RH (non-dewing)
Specific Use
● Electric dust collectors, high-voltage distribution facilities, machine tools and other various plants
Remarks
● Due to the structure of the lock, the key must be pushed in as it is turned in order to release the lock.
● Remove the load on the sickle (latch) when operating electrically.
