logo Yushi
YUSHI

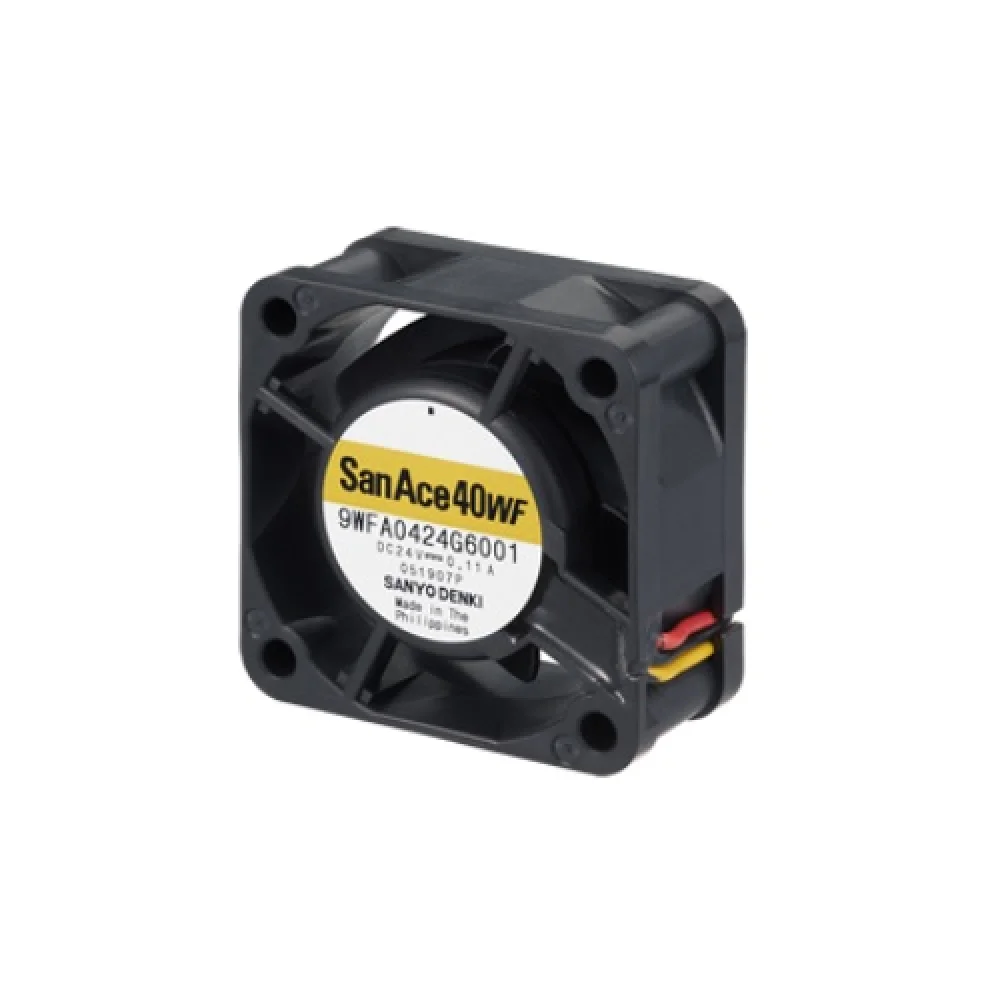

Oil Proof Fan San Ace 40WF 9WFA0424G6001

Sold (0)

Oil Proof Fan San Ace 40WF 9WFA0424G6001

SKU :
9WFA0424G6001
Size :
0*0 mm
Weight :
0 kg

Specifications

Model No.
9WFA0424G6001
Frame size [mm]
40
Frame thickness [mm]
20
Frame material
Plastic
Rated voltage [V]
24
Operating voltage range [V]
20.4~27.6
Rated current [A]
0.11
Rated input [W]
2.6
Rated speed [min-1]
17000
Max. airflow [m3/min]
0.31
Max. airflow [CFM]
10.9
Max. static pressure [Pa]
170
Max. static pressure[inchH2O]
0.68
SPL [dB(A)]
48
Operating temperature[˚C]
-20~+70
Expected life[h]
40000/60℃ (70000/40℃)
Mass [g]
45
Sensor type
Pulse sensor
PWM control function
No
Ribbed
Yes
